Description

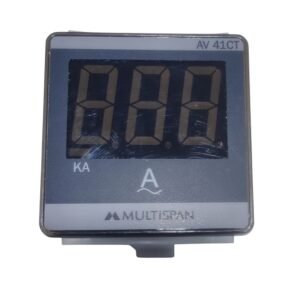

Multispan AV-41CT Digital Ampere Meter – Reliable AC Current Monitoring
The Multispan AV-41CT is a compact single-phase AC digital ampere meter designed for monitoring electrical current in control panels, distribution panels, industrial machines and automation systems. It uses a current transformer (CT) input and provides a clear digital indication of the measured current. Multispan’s documentation specifies a selectable CT range up to 4000/5A and Class 0.5 accuracy for the AV-41CT. (Multispan)
🔹 Key Features
- Model: Multispan AV-41CT
- Single-phase AC current measurement
- CT-operated input
- CT selection up to 5/5A–4000/5A
- Class 0.5 accuracy
- 3-digit 7-segment LED display, according to the AV-41CT operating manual
- Compact 48 × 48 × 46 mm panel-mount design
- Panel cutout: approximately 45 × 45 mm
- 230V AC, 50Hz supply
- IP-65 front-side protection available as specified
- Operating temperature: 0°C to 55°C
- Up to 95% RH, non-condensing
- CAT III measurement category specified in the manufacturer’s documentation (Multispan)
⚙️ How AV-41CT Works
The AV-41CT is connected to the secondary of a Current Transformer (CT). The CT scales the high primary current to a standard secondary current, allowing the meter to display the corresponding current value.
High-Current Load → Current Transformer → AV-41CT → Digital Current Display
The CT ratio can be selected using the meter’s CT-selection function according to the manufacturer’s operating instructions. (Multispan)
📋 Technical Specifications
| Parameter | AV-41CT |
|---|---|
| Product Type | Single Phase AC Ampere Meter |
| Measurement | AC Current |
| Input | CT Secondary |
| CT Selection Range | 5/5A to 4000/5A |
| Accuracy | Class 0.5 |
| Display | 3-Digit 7-Segment LED |
| Display Size | 0.8″ |
| Power Supply | 230V AC, 50Hz |
| Dimensions | 48 × 48 × 46 mm |
| Panel Cutout | 45 × 45 mm |
| Mounting | Panel Mount |
| Protection | IP-65 Front Side |
| Operating Temperature | 0–55°C |
| Humidity | Up to 95% RH, non-condensing |
| Safety Category | CAT III |
Specifications are based on Multispan’s AV-41CT operating documentation and product catalog. (Multispan)
🏭 Applications
The AV-41CT can be used for current monitoring in:
- Industrial control panels
- Electrical distribution panels
- Motor control panels
- Machine control systems
- Automation panels
- Power distribution systems
- Manufacturing equipment
- Transformer and electrical systems
- OEM control panels
- Industrial electrical monitoring
Its compact 48 × 48 mm format makes it suitable where panel space is limited. (Multispan)
⭐ Why Choose a Digital CT Ampere Meter?
A digital panel ammeter makes current values easy to read directly from the control panel. Using a CT also allows the meter to monitor higher current circuits while keeping the meter input within its specified measurement range.
For accurate operation, the CT primary/secondary ratio must be correctly selected and wired according to the manufacturer’s instructions.
