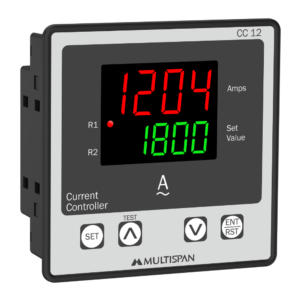

Multispan CC-12 Current Protection Relay – Reliable Current Monitoring & Protection
Introduction
The Multispan CC-12 Current Protection Relay is a digital panel-mount current controller designed for reliable monitoring and protection of electrical systems. It is suitable for industrial control panels, MCC panels, DG sets, pumps, HVAC systems and other electrical applications where over-current and under-current protection is required.
Key Features of Multispan CC-12
- 4+4 digit digital display
- Programmable Over Current and Under Current Protection
- 1 Relay, 5A, 230V AC
- CT input range up to 4000/5A
- Supply voltage: 100–270V AC
- Panel-mount design
- Front protection available up to IP65
- Compact 96 × 96 × 43 mm panel size
- Easy-to-use SET, INC, DEC and ENTER/RESET keys
- Suitable for single-phase current monitoring applications
Technical Specifications
| Parameter | CC-12 Specification |
|---|---|
| Product | Current Protection Relay |
| Brand | Multispan |
| Model | CC-12 |
| Display | 4+4 Digit |
| Input | CT Secondary 0.5–5A AC |
| Primary CT Setting | 5–4000A |
| Output | 1 C/O Relay |
| Relay Rating | 10A, 230V AC / 28V DC |
| Supply | 100–270V AC |
| Dimensions | 96 × 96 × 43 mm |
| Panel Cutout | 92 × 92 mm |
| Operating Temperature | 0–55°C |
| Front Protection | Up to IP65 |
These specifications are based on the available CC-12 product information. (Cryo India)
Applications
Multispan CC-12 can be used in:
- Electrical Control Panels
- MCC Panels
- Submersible Pump Panels
- Road Construction Panels
- DG Sets
- Industrial Motor Protection
- HVAC and Chiller Systems
- Current Monitoring Applications
Why Choose Multispan CC-12?
The CC-12 combines digital current indication with programmable protection functions in a compact panel-mount format. Its CT-based current measurement and relay output make it suitable for applications where electrical equipment needs monitoring and protection against abnormal current conditions.
Product Part Code
One listed CC-12 variant is:
CC-12-A2-N0 – 96 × 96 × 43 mm, 1-phase 2-wire, CT up to 4000/5, 1 C/O relay, 100–270V AC. (Cryo India)
