Description

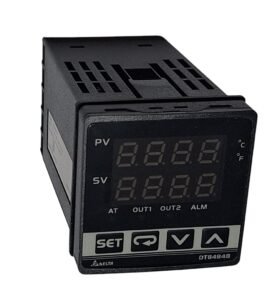

Delta DTB4848CR Temperature Controller

The Delta DTB4848CR is an advanced industrial temperature controller designed for accurate and reliable temperature/process control applications. It features a 48 × 48 mm (1/16 DIN) panel size, universal sensor input, PID/ON-OFF control, analog current output, relay output and RS-485 Modbus communication. (Digi-Key)

Product Specifications

• Brand: Delta
• Model: DTB4848CR
• Series: DTB Series
• Panel Size: 48 × 48 mm
• Supply Voltage: AC 100–240 V, 50/60 Hz
• Display: 2-line, 4-digit 7-segment LED
• Input: Thermocouple, RTD and analog input
• Thermocouple: K, J, T, E, N, R, S, B, L, U, TXK
• RTD: Pt100 / JPt100
• Analog Input: 0–5 V, 0–10 V, 0–20 mA, 4–20 mA, 0–50 mV
• Control Modes: PID, Programmable PID, ON/OFF and Manual
• Output: 4–20 mA DC + Relay
• Communication: RS-485, Modbus ASCII/RTU
• Panel Protection: IP65
• Operating Temperature: 0°C to +50°C (FactoryMation)

Key Features

Universal Input

DTB4848CR supports multiple thermocouple, RTD and analog input types, making it suitable for different industrial temperature-control requirements.

PID Control

PID and programmable PID control help maintain the required process temperature with stable control performance.

RS-485 Modbus Communication

The built-in RS-485 interface supports Modbus communication for integration with PLC, HMI and other automation systems. (DeltaACDrives.com)

Dual Control Capability

The DTB series is designed to support heating and cooling control applications, making it useful in industrial process automation. (DeltaACDrives.com)

Applications

• Industrial heating systems
• Ovens and furnaces
• Packaging machinery
• Plastic processing machines
• HVAC and process control
• Manufacturing machinery
• Heating and cooling systems
• Industrial automation panels

Why Choose DTB4848CR?

The Delta DTB4848CR combines compact panel mounting, multiple sensor-input options, PID control, analog/relay outputs and Modbus communication in one industrial temperature controller. This makes it suitable for a wide range of automation and process-temperature applications.
