Description

Multispan UTC-221P Temperature Controller – Precision Temperature Control for Industrial Applications

When industrial processes depend on accurate and stable temperature control, choosing the right temperature controller is essential. The Multispan UTC-221P is a compact digital temperature controller designed for industrial applications requiring reliable monitoring and automatic temperature regulation.

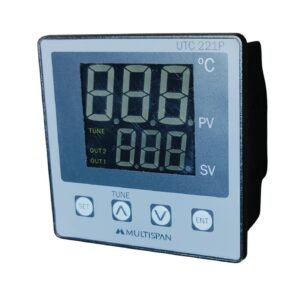

The product shown is the Multispan UTC-221P, marketed by ELITE Industrial Engineers / Elite Automation Mart.

🔧 Multispan UTC-221P – Product Overview

The UTC-221P features a dual digital display, allowing users to monitor the Process Value (PV) and Set Value (SV). It supports configurable temperature inputs including J, K and PT-100, making it suitable for a variety of heating and temperature-control systems. (Multispan)

Its control functions include PID with Auto-Tuning, Time Proportional (TP), and ON-OFF control, with heating and cooling control options depending on configuration. (Multispan)

⭐ Key Features

• Product: Multispan UTC-221P
• Type: Digital Temperature Controller
• Input: J / K / PT-100
• Temperature ranges:
  • J: 0 to 600°C
  • K: 0 to 999°C
  • PT-100: -99 to 400°C
  • PT.1: -19.9 to 99.9°C
• Control: PID Auto-Tuning / Time Proportional / ON-OFF
• Output: Relay / SSR drive, depending on variant
• Supply: 100–270V AC, 50–60Hz
• Display: Dual 7-segment digital display
• Keys: SET, INC, DEC and ENT
• Dimensions: 72 × 72 × 45 mm
• Panel cutout: 68 × 68 mm
• Operating temperature: 0°C to 55°C
• Front protection: IP-65 available as specified
• Mounting: Panel mount

These specifications are based on Multispan’s published UTC-221P product information and documentation. (Multispan)

🎯 Why Use a Temperature Controller?

A temperature controller continuously compares the actual process temperature with the desired setpoint and controls the connected heating or cooling equipment accordingly. With PID Auto-Tuning, the UTC-221P can be configured for more controlled temperature regulation in suitable applications. (Multispan)

The dual PV/SV display also makes it easier for operators to see the current process temperature and target temperature simultaneously.

🏭 Applications of Multispan UTC-221P

The UTC-221P can be used in applications such as:

• Industrial heating systems
• Ovens and furnaces
• Packaging machinery
• Extrusion machinery
• Boilers
• Food-processing equipment
• Incubators
• Process heating systems
• Industrial automation panels
• Temperature-controlled machinery

Multispan specifically lists packaging machinery, extrusion machinery, furnaces and boilers, ovens and incubators, and food-industry applications for the UTC-221P. (Multispan)

⚙️ Compact Design for Control Panels

With a 72 × 72 mm front size and a 68 × 68 mm panel cutout for the referenced version, the UTC-221P is designed for installation in industrial control panels where compact instrumentation is important. (Multispan)

Its simple SET, INC, DEC and ENT keypad provides access to configuration and operating parameters.

🔌 Input & Output Flexibility

The controller supports J, K and PT-100 sensor inputs, allowing it to work with commonly used industrial temperature sensors. Depending on the model/variant, output options include a relay and SSR drive. (Multispan)

This flexibility makes it suitable for different machine-control requirements while keeping the controller compact.

🏢 Available from ELITE Industrial Engineers

ELITE Industrial Engineers focuses on industrial automation products and solutions with an emphasis on Automation | Innovation | Reliability.

The Multispan UTC-221P Temperature Controller can be supplied through Elite Automation Mart for industrial automation and temperature-control requirements.

📞 Contact ELITE Industrial Engineers

Company: ELITE Industrial Engineers
Website: eliteautomationmart.com
Contact: 9315333867
Product: Multispan UTC-221P Temperature Controller
Category: Industrial Automation & Temperature Control
