Description

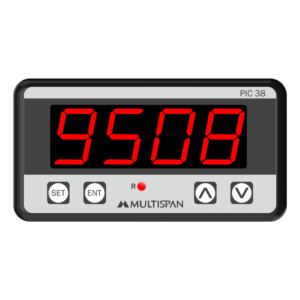

Multispan PIC-38 Process Controller
Reliable Process Monitoring & Control for Industrial Applications
Multispan PIC-38 एक compact digital Process Controller है, जिसे industrial process parameters की monitoring और control के लिए उपयोग किया जाता है। यह pressure, level, flow, temperature तथा विभिन्न analog transmitter signals को monitor करने के लिए suitable है।
Key Features
- 4-Digit, 7-Segment Red LED Display
- Universal Analog Input:
- 0–10V DC
- 0–20mA DC
- 4–20mA DC
- 1 Relay output standard
- 2 Relay output option उपलब्ध
- 24V DC transmitter supply
- Analog retransmission output option
- RS-485 Modbus communication option
- Selectable measurement range: -999 to 9999
- Front protection: IP-65
- Supply: 100–270V AC, 50/60Hz
- Operating temperature: 0°C to 55°C
- Panel size: 48 × 96 mm
Applications
Multispan PIC-38 का उपयोग कई industrial applications में किया जा सकता है:
- Pressure Monitoring
- Level Measurement
- Flow Monitoring
- Temperature/Process Monitoring
- Analog Transmitter Applications
- VFD से RPM/Analog Signal Monitoring
- Industrial Automation Panels
- Process Control Systems
- Machine Automation
Technical Specifications
| Specification | PIC-38 |
|---|---|
| Display | 4 Digit 7-Segment, 0.8″ Red LED |
| Input | 0–10V DC / 0–20mA DC / 4–20mA DC |
| Range | -999 to 9999 |
| Output | 1 Relay 1 C/O |
| Optional Output | 2 Relay / Retransmission / RS-485 Modbus |
| Transmitter Supply | 24V DC |
| Supply Voltage | 100–270V AC |
| Dimension | 48(H) × 96(W) × 68–76(D) mm* |
| Panel Cutout | 46(H) × 92(W) mm |
| Protection | IP-65 Front |
| Operating Temperature | 0°C to 55°C |
*Depth specification variant/source के अनुसार अलग दी गई है; final ordering से पहले exact model variant confirm करना recommended है. (Multispan)
Why Choose Multispan PIC-38?
PIC-38 compact panel mounting, universal analog input और configurable process-monitoring functions के कारण industrial automation panels में उपयोगी solution है। यह pressure, level, flow और transmitter-based process signals को digital display पर monitor करने में मदद करता है.
Buy Multispan PIC-38
Brand: Multispan
Product: PIC-38 Process Controller
Application: Industrial Automation & Process Monitoring
